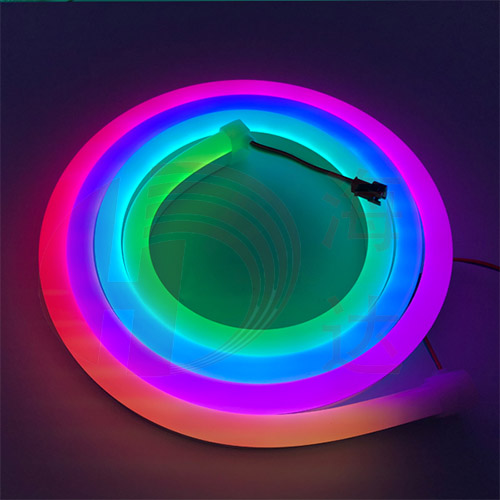

IP67 Waterproof addressable pixel HD108 led Neon flex

IP67 Waterproof addressable pixel HD108 led Neon flex

HD108 pixel LED chip adopt Newstar’s IC to keep long lifespan, top quality/most stable/fastest run speed/most complete colors.

What is HD108 LEDs?
Upgrade of HD107S, each output channel can output 16-bit (65536 Level) high gray-scale type, Newstar is the original IC factory.
PWM refresh rate: 27kHz, Oscillator frequency: 40Mhz.

Categories:
  • Description
  • Inquiry

HD108 60pixel Neon flex

1, IC Model: Newstar’s 108 IC chip;
2, Available Color: RGB
3, Input Voltage: 5V DC
4, Power/m: 18W
5, Working Mode: SPI
6, LED Type: SMD5050
7, LED Qty / meter: 60pcs
8, Cutting Unit: each one LED is cuttable
9, Cutting Length: 16.67mm
10, Pixel Qty/m: 60 Pixels
11, Max Length Single Feed: 3m
15, Material: Silicon tube
13, Silicon tube Size: 14*26mm
14, Waterproof rating: IP67
15, Bending direction: Side
16, Beam Angle: 270°
17, Min Bending: 80mm
18, Installation Temp.: 0°C-55°C
19, Ambient Temp.: -25°-55°
20, Control: DMX, Pixel, Madrix…
21, Gray Scale: 65536;
22, Warranty: 3 years;
23, Certification: CE & RoHS;

Application:
1) Building decoration
2) Car decoration
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement lighting and decoration
