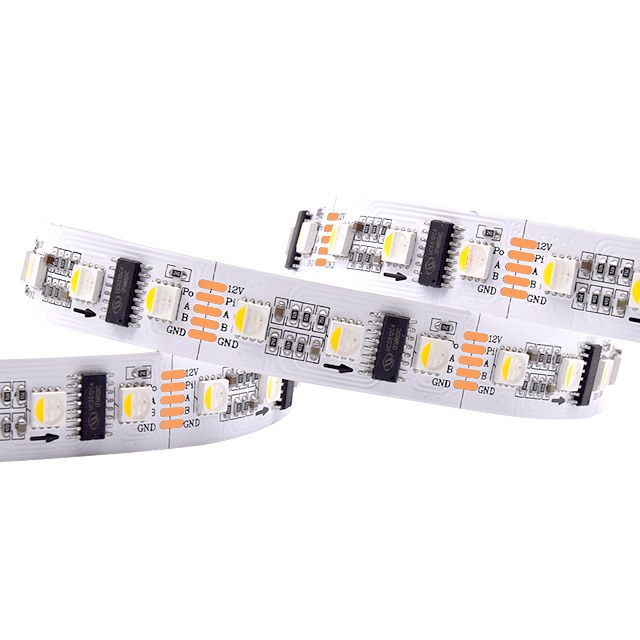

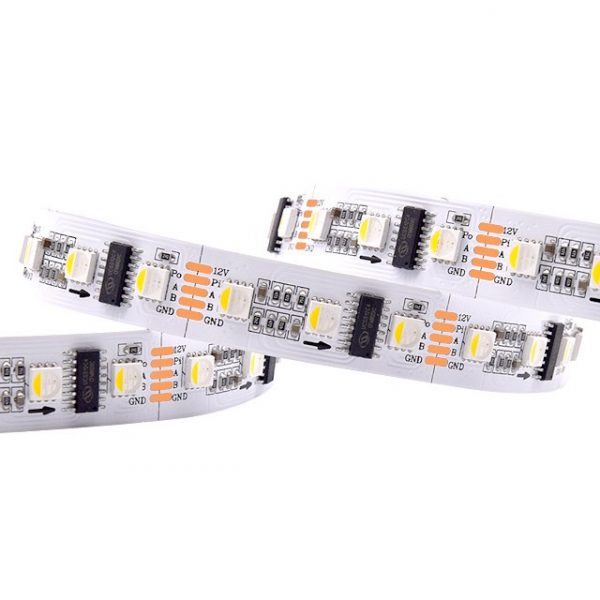

DC12V 72Leds DMX512 RGBW LED Strip TM512AC UCS512B3 UCS512C3

Features:

1. Newstar’s DMX512 led strips adopt DMX512 protocol, and the signal is parallel not series.
3. The parallel DMX512 signal could avoid RGBW LEDs color influenced by the failure of one light in serial connection.
3. Five cables: +DC5V(12V/24V), PI address writing wire, A(DA+), B(DA-), GND
4. DMX512 LED strip lights, can be controlled by DMX controller without any decoder, and you can use the decoder to save more channels and control more pixels.
5. Communication between DMX512 led digital strips are synchronized perfectly under support of Artnet / DMX512 led controllers.
6. Vivid lighting performance operated by Madrix software, Artnet / DMX512 led controllers.

—————————————————————————————————————————-

DC12V 72LEDs/m DMX512 RGBW Pixel LED Strip Lights Parameters
OPTICAL PARAMETERBASIC PARAMETER
Model No.: NS-2904S60-24V,   LED Q’ty: 60LEDs/m,  Pixels: 10pcs ,  Gray Scale:256
IC Type: UCS2904,  Power/m: 19W,    Input voltage: DC24V,   Warranty: 3years,
Illumination Angle: 120° ,   Working temperature: -20℃~+45℃,  Working hour: 30000h
Energy grade: A,    SMD LED spacing: 100mm,   CRI(Ra): >80Ra,  PCB: White/Black
Minim cuttable length:  every 6LEDs is cuttable,  PCB Width: 10mm
Compatiable with SK6812 RGBW pixel led strip tape
