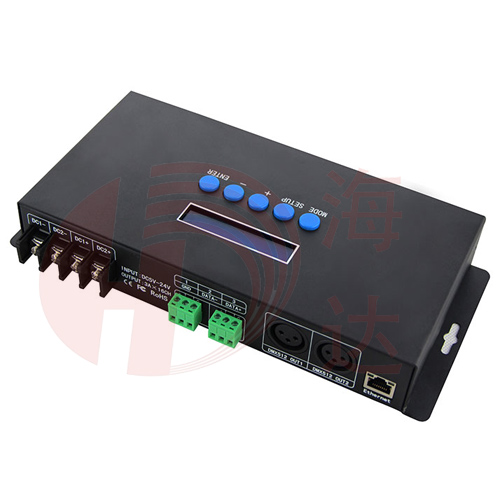

ArtNet sACN Ethernet-SPI/DMX HD108 pixel light controller
 This Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction’s contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of led lamp, and to achieve the unified control of all kinds of led lamp in the same project.
- Description
- Inquiry
Ethernet-SPI/DMX pixel light controller Specifications:
Basic Features：
1. With LCD display and built-in WEB SERVER setting interface, easy operation.
2. Support Ethernet DMX protocol ArtNet, sACN(E1.31) (only V2 versions), can be expanded to other protocols.
3. Multi SPI (TTL) signal output, up to 5440 pixels control.
4. Output DMX512 signal at the same time, convenient for the connection of different types led lamp.
5. Support various LED driving IC, flexible control.
6. Support online firmware upgrade.
7. Adopt DIP plug-in design for the easily-worn parts, Users can repair the damage caused by wrong wiring or short circuit.
8. Built-in test mode, using a network interface with indicator light, work status is clear when at a glance.
Specifications：
| Â Model | Â BC-216 |
| Â Working Voltage | Â DC5-DC24V |
|  Output Current |  3A X 16CH(Built-in 5A fuse） |
| Â Input Ethernet control protocol | Â Â V1: ArtNet V2: ArtNet, sACN(E1.31) |
| Â Output Control IC | Â Â 2811/8904/6812/2904/1814/1914/5603/9812/APA102/2812/9813 /3001/8806/6803/2801 |
|  Control Pixels |  RGB：340 Pixels X16CH  RGBW：256 Pixels X16CH |
| Â Output DMX512 | Â Two port(2X512 Channels) |
|  Working Temp |  -20~55℃ |
|  Product Dimension |  L260×W146.5×H40.5(mm) |
| Â Weight(G.W) | Â 1100g |
Ethernet-SPI/DMX pixel light controller Instruction of interface and ports:
Wiring instructions of SPI output port：
>To output LPD6803/LPD8806/P9813/WS2801 controlling signal , it required at least three lines :
DATA:Â 6803/8806/9813/2801 DATA
CLK:Â 6803/8806/9813/2801 CLK
GND: GND，connect with the chip GND
>To output WS2811/ TLS3001/TM1814/SK6812 controlling signal, it required at least two lines：
DATA:Â WS2811/ TLS3001 DATA
GND: GND，connect with the chip GND
>Connect the Lamps positive supply to the + of the SPI output ports.
More details, please send email to hd-pixels@hotmail.com.
