8×8 16×16 8×32 Pixel HD108 16bit 65536 Flexible Individually addressable led Screen Matrix

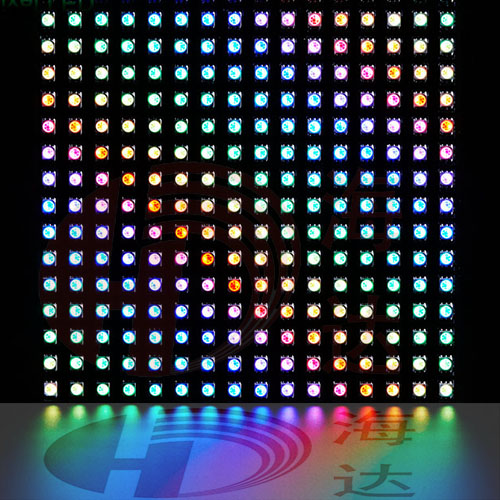

HD108-LED-DISPLAY-7

8×8 16×16 8×32 Pixel HD108 16bit 65536 Flexible Individually addressable led Screen Matrix

>pixels HD108 led digital flexible panel screen matrix(same protocol with APA102-65536),DC5V input
>Work with the programmable SD controller(not included), it can make flexible LED screen
>Arduino IC Digital Addressable Dream Color RGB LED Strip
>Arduino compatible.You can control the strip by your programmable arduino.

Categories:
  • Description
  • Inquiry

IC type : HD108 (16bit 65536)

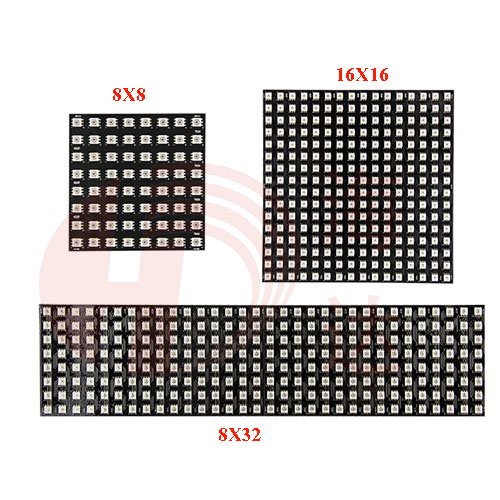

LED QTY : 8X8 64leds, 16×16 256leds, 8×32 256leds
Pixels : 8X8 64pixels, 16×16 256pixels, 8×32 256pixels
Voltage :5V
Power :8X8 64pixels 19.2w, 16×16 256pixels 76w, 8×32 256pixels 76w
Color :RGB full color
Greyscale : 65536
Pixel resolution : 8X8, 16×16, 8×32
Pixel pitch : 10mm
Dimension/mm : 8×8 80*80MM, 16×16 160*160MM, 8×32 80*320MM
Waterproof grade :Non-waterproof

Technology advantages
built-in Newstar’s NS108 IC,  PWM refresh rate can be 27Khz, Greyscale 65536, the most suitable pixel LEDs to make led screen, and every one led lignting effect can be control with fastest rate, every rgb led is digital addressable.

Easy installation
Every one LED lamp can be arbitrary cut off, good flexibility, easy installation, can be arbitrary bending.

Dream color lighting
Match use controller can appear colorful curtain-up/ flow water/raindrop/jump flash and so on hundreds of lighting effect, you can also edit animation effect by Coreldraw/Flash/LedEdit software.

Application
Making led screen, led wall, advertising board. Apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.
