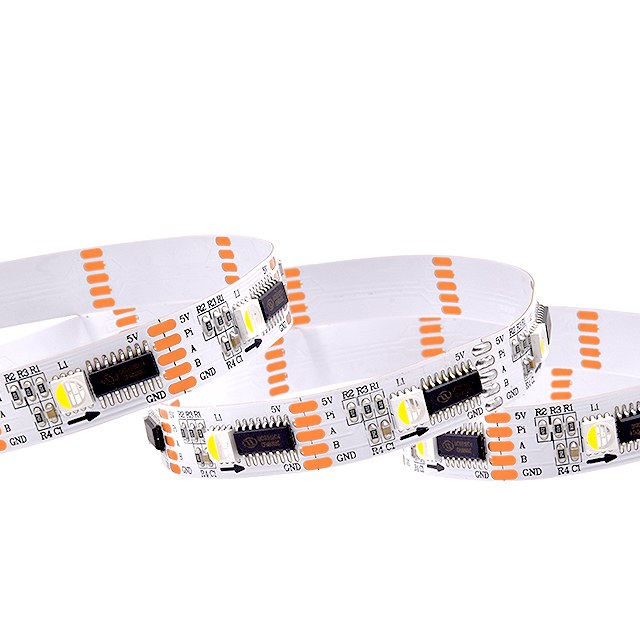

32pixels DC5v DMX512 RGBW LED Strip every leds cuttable

RGBCCT DMX512 LED Strip DC24V 60Leds
32pixels-addressable-dmx512-rgbw-pixel-led-strip

32pixels DC5v DMX512 RGBW LED Strip every leds cuttable

1. DMX512 RGBW RGBWW 32 Pixels LED Strip, every leds can be cuttable
2. DC5V, 10W/M
3. 12mm width White / Black FPCB
4. Warm white 3000K, neutral white 4500K, Cool white 6500K to choose
5. 3M adhensive tape on backside of non-waterproof strip
6. Support K-1000C/ K-8000C/ YM-501 /DMX512,Artnet to control
7.Standard DMX512 Signal wire digital control interface A,B
8. Widely used in entertainment, stage, live performance, Disco Club and TV Show, etc

Categories: Tags:
  • Description
  • Inquiry

:::Electrical Parameter:::
LED QTY: 32LED/M
Color/CCT:  RGBW
White CCT: 2200K 2500K 2700K 3000K 3500K 4000K 5000K 5500K 6000K
Bin/Step:  3 Step MacAdamEllipse, 1bin only
Chip:  EPISTAR
CRI:  Ra+80
Luminous flux:  3000MCD
Max power:  25.6W/M
Voltage:  DC5V Input
Current:  5.12A/M
Cut length:  1 LED/31.25mm
PCB Width:  12mm/3oz/ WHT
Connection:  5*20AWG / R’-‘/G’-‘/B’-‘/W’-‘/ BLK’+’
Packing:  Carton box
Installation:  55280 3M tape
Max run length:  5meters
Lifespan & warranty:  50,000Hrs /3years
Dimmable:  Yes
Beam Angle:  120°
Certificate:  CE, RoHS, UL



DMX512 RGBW led strip have following advantages than SPI led strip

  • Parallel DMX512 signal could avoid RGBW LEDs color influenced by the failure of one light in serial connection.
  • There are 8bit DMX512 signal, 256 grayscale and 16 bit DMX512 signal, 65536 grayscale to choose which based on the DMX512 IC model.
  • Offer UCS512C4 IC chip or TM512AC IC chip
  • Offer Gama correction curve of 1.0 or Gama correction curve of 2.2
  • Presence of white LED allows for higher brightness and more color mixing options.
  • 4 colors LED allowing for tones that were previously hard to achieve with single RGB strip.
  • White and RGB can be independently controlled to allows us to create bolder and more vibrant colors than with RGB alone.
